Dornier Do 18

The D0 18 was a directly descendant of the outstanding whale-family. It's first flight was in 1935, now as a twin engine Parasol single wing plane. The Do 18 D was replaced as a sea-reconnaissance plane by the Do 18 G-1 at the outbreak of war. An unarmed training version with double steering was named Do 18 H. The production was canceled in 1940 as many Do 18 G-1 were rebuilt to Do 18 N-1 for SAR-purposes. The Do 18 was seen in the first months of the year above the North-Sea and the Channel, mainly during the Batlle of Britain. In total, 100 Do 18 were built, thereof 70 Do 18 G's.

Series: D,E,F,G,H,N,L,V

e.g.type:

Use:

Do 18 E

Postal airplane

Do 18 D

Reconnaissance plane

Do 18 H

Blind-flight-school

Data for the: Do D

Length:

19,23 m

Width:

23,70 m

Height:

5,35 m

Crew:

Motor:

Jumo 205 C

Power:

2 x 600 PS

Vmax:

250 km/h

Range:

4225 km

Ceiling:

4350 m

Armament:

2 x MG15

.

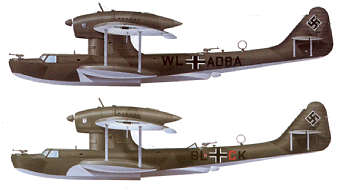

Camouflage examples

Do 18 D; Flugzeugführerschule(See)

Do 18 D; 2./KüFlGr. 906
